溅射沉积Ga 2 O 3薄膜的微观结构和光学性能

时间:2024-05-27 15:37:33 浏览量:0

Semiconductor materials have played a huge role in advancing today’s technology through the  electronic and photonic devices ushered in over the years. The advancement has been driven in  part by society’s growing need for electronic devices capable of handling higher power, higher  temperature, and higher frequency. Current research efforts are expanding to ultra-wide bandgap  semiconductors such as gallium oxide (Ga2O3). The principal goal of this dissertation is to obtain  high quality β-Ga2O3 films with controlled conductivity by magnetron sputtering deposition. The  specific objectives are the following: To grow β-Ga2O3 films on sapphire substrates (section 5.2)  and on native β-Ga2O3 by rf sputtering (section 5.3), to produce doped and undoped β-Ga2O3 films  (Section 5.4). Additionally, to grow Lu2O3/ Ga2O3 and B2O3/Ga2O3 alloy films on (2 0 1) UID or  Sn-doped Ga2O3 and Al2O3 substrates to tune Ga2O3 original bandgap (Section 5.5). To obtain microstructural, morphological, compositional, and optical data from XRD, AFM, SEM, EDS, and  UV-Vis characterization methods for all the experiments mentioned above. From this data,  correlate the effects of the varying parameters for the optimization of the films, to use the  developed films to fabricate Schottky barrier diodes and proceed with the electrical characterization of the fabricated devices (section 5.6).


Currently, 40% of the total primary energy consumption in the United States is attributable to  electrical energy. Power electronics play a key role in the conversion of the electrical energy  produced in power plants by reducing the high voltage generated to one that can utilize. Approximately 30% of total electrical energy currently flows through power electronics, with  projections indicating a substantial increase to possibly reach 80% over the next decade. In modern  systems, this conversion is performed by the switching and rectifying characteristics of  semiconductor devices such as diodes, thyristors, and power transistors. When the electrical energy  passes through these components, it inherently experiences an energy loss, creating an opening for  researchers to introduce new materials with enhanced properties leading to high conversion  efficiency. The power conversion sector is expected to expand from $52 billion to $71 billion by  2023, driven by the increasing consumption of electrical energy. Figure 1.1 depicts a schematic  highlighting the significance of power electronics in the process of power conversion, especially  considering that since 30% of the total energy in the form of electricity passes through power  electronics.


Wide-bandgap (WBG) materials such as silicon carbide (SiC) and gallium nitride (GaN) have  been used in ultrahigh-voltage power switching applications as a better alternative to Si.  These WBG SiC and GaN semiconductors can tolerate a much higher breakdown electric field  (Ec) at a comparable dielectric constant (ε) and similar charge carrier mobility (μ), which translates  into a larger figure of merit (BFOM=εμEc 3 ), compared to Si. One of the main downsides of  these materials is the higher cost of the single crystal substrate wafer production, due to the  complexity of the crystal growth chemistry and the smaller scale of the crystal growth industry.  Researchers worldwide have extensively explored semiconducting metal oxides due to their  appealing attributes, including exceptional transparency, wide band gap, and their applicability in  power electronic devices. High-quality gallium oxide (Ga2O3) wafers can be fabricated using  simple metal-based crystal growth processes used in the fabrication of inexpensive Si or sapphire  (Al2O3) crystals. Furthermore, epitaxial growth of high quality Ga2O3 thin films has been  demonstrated by various methods including chemical vapor deposition, pulsed lased deposition,  molecular beam epitaxy, metal-organic chemical vapor deposition and magnetron sputtering [9- 16]. Among the different fabrication methods for depositing oxide thin films, magnetron sputtering  is the preferred method in many industrial processes because it is an established technique, suitable  for large area fabrication and roll-to-roll processing. The advancing Ga2O3 based power  electronic technology has the potential to address the trade-off between cost and performance  effectively by offering an enhanced performance at a lower cost. Figure 1.2 shows the results of  techno-economic modeling for 6 in wafers and indicates that the cost of wafers will drop  significantly in the future as more large-size and high-volume manufacturing processes are  introduced.


1

Figure 1.2 (a) Modeled Ga2O3 wafer manufacturing cost as a function of the fabrication process  step (inner circle) and cost type (outer ring). The total cost is dominated by Iridium (Ir) material  used in Ga2O3 crystal growth crucible. (b) Modeled 6 in wafer costs comparison for Ga2O3 and  SiC wafers, and the Ga2O3 cost reduction potential. The Ga2O3 cost is >3x less compared to SiC  and can be further reduced by better iridium (Ir) crucible utilization and faster polishing and  epitaxy processes.


Crystallographic studies performed by Ahman et al, indicate that the unit cell of β-Ga2O3 contains two inequivalent Ga positions, one with tetrahedral geometry Ga (I) and the second with  octahedral geometry Ga (II). The oxygen atoms are located three distinct positions labeled as O  (I), O (II), and O (III), forming a distorted cubic closed-packed structure (Fig. 1.4). One oxygen  atom is coordinated tetrahedrally, and the remaining two oxygen atoms are coordinated in a  trigonal manner. A summary of the properties for all polymorphs is presented in Table 1.1.


2

Figure 1.4 Monoclinic crystal structure of β-Ga2O3

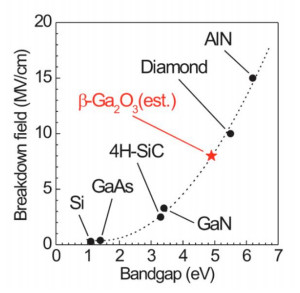

Gallium oxide is known to be an ultra-wide bandgap semiconductor, with an energy gap  of about 4.7-4.9 eV. A semiconductor with a ultra-wide energy bandgap has a higher  electric breakdown field, therefore Ga2O3 (8 MV/cm) has an electric field value higher than that  of other commonly used semiconductors, such as Si (0.3 MV/cm), 4H-SiC (2.2 MV/cm) and GaN  (2.0 MV/cm) as shown in Fig. 1.5.


3

Figure 1.5

Due to its wide band gap, pure stoichiometric β-Ga2O3 is colorless and transparent over a  wide optical range, covering visible down to the UV-C (250 nm) region. These optical and  electrical characteristics place β-Ga2O3 into the realm of transparent conductive oxides (TCOs). In  addition, a strong correlation between electrical conductivity and absorption of the films have been  reported. The electrical conductivity of the films is not only affected by the doping  concentration, but also by the atmosphere in which the film is grown. Films grown in an oxidizing  atmosphere are highly insulating and show a transparent or yellowish coloration, which is indicative of absorption in the blue range of visible light. In the other hand, films grown in reducing  atmosphere are conductive and show more of a blueish coloration. This can be explained by the  high density of dopants making the material absorb in the red and NIR regions of the spectrum.
